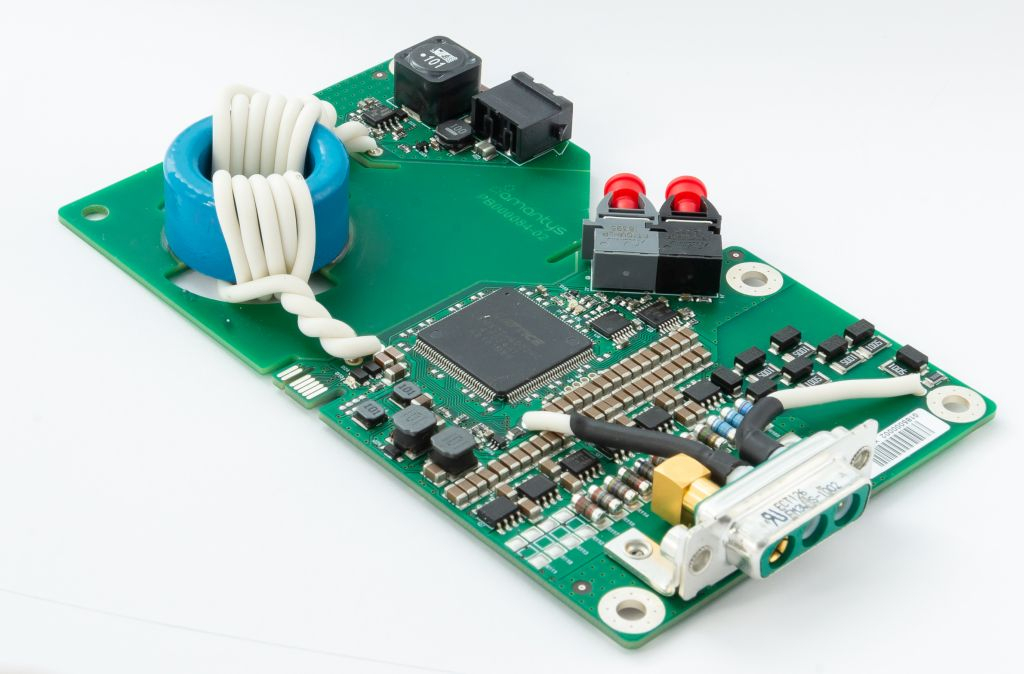

3300V Single Channel Off-Module Gate Drive - AD00XA8
The 3300V Single Channel Off-module Gate Drive is compatible with many IGBT modules particularly those in a 190x140mm or 140x130mm high-power module (HPM) package. It is also suitable for driving 1700V IGBTs.
Outline Specification
- Mounts off module and connects with a cable
- Small Module Interface Card (MIC) mounts on the IGBT and provides over-voltage clamping
- Power Insight support for configuration and download of fault counters
- Multi level desaturation detection (threshold voltages and timings)
- Under voltage lockout detection
- Monitors all power rails for safe start up with IGBT held off
- Active clamp for overvoltage detection
- Two or three level mode operation
- di/dt protection if cable to power emitter is used (not required)
The gate drive is suitable for a wide variety of applications such as traction, wind energy and medium voltage motor drives. Mechanically compatible with third party solutions it can be used for retrofit or as a second source.
General
Amantys Gate Drives are designed for high power, high availability applications such as railway traction, wind turbines and medium voltage motor drives. Featuring embedded PLD and software technology the gate drives communicate over the fibre optic link using Amantys Power Insight technology a capability unique to Amantys. This allows the power stack designer to optimise the performance of the stack by configuring and monitoring the gate drive in situ, whilst at the same time enabling normal operation. Capable of driving a range of IGBT modules from different manufacturers without hardware changes, they reduce inventory for users who want flexibility in design and sourcing. Each gate drive is suitable for 2-level, 3-level and multi-level converters.
